Automotive electronics
Automotive electronic module includes regulator, ignition module, circuit board three prevention, ECU control module, charging pile and DC contactor, etc.
| Model | Application point | Product type | Component | Curing condition | Solution |
| MDGEL 6708 | Regulator | Silicone | 2K | Room temperature/heat cure | pcb chip protection |
| MDSI 7435 | Regulator | Silicone | 1K | Heat curing | bonding of heat sink and shell |
| MDSI 7435 | Regulator | Silicone | 1K | Heat curing | bonding of ceramic substrate and heat sink |
| MDEP 321 | Regulator | Epoxy | 1K | Heat curing | bonding of ceramic substrate and heat sink |
| MDGEL 6605 | Ignition module | Silicone | 2K | Room temperature/heat cure | pcb board protection |
| MDSI 6125 | Ignition module | Silicone | 2K | Room temperature/heat cure | pcb board filling protection |
| MDCOAT 7060 | Circuit board water-proof | Silicone | 1K | Room temperature | pcb coating |
| MDCOAT 7060 | ECU control module | Silicone | 1K | Room temperature | pcb coating |
| MDGEL 6606 | ECU control module | Silicone | 2K | Room temperature/heat cure | pcb board protection |
| MDPU 8110(8608) | ECU control module | PU | 2K | Room temperature/heat cure | pcb board protection |
| MDSI N7339 | ECU control module | Silicone | 2K | Room temperature | shell sealing |
| MDSI 7005 | ECU control module | Silicone | 1K | Room temperature | shell sealing |
| MDCOAT 7060 | Charging pile | Silicone | 1K | Room temperature | pcb coating |
| MDPU 8608 | Charging pile | PU | 2K | Room temperature/heat cure | inductor potting |
| MDTIM 35# | Charging pile | Silicone | 1K | / | inductor heat dissipation protection |
| MDEP 3115 | DC contactor | Epoxy | 2K | Room temperature/heat cure | potting protection |
Contact Us
Ask for Sample&TDS

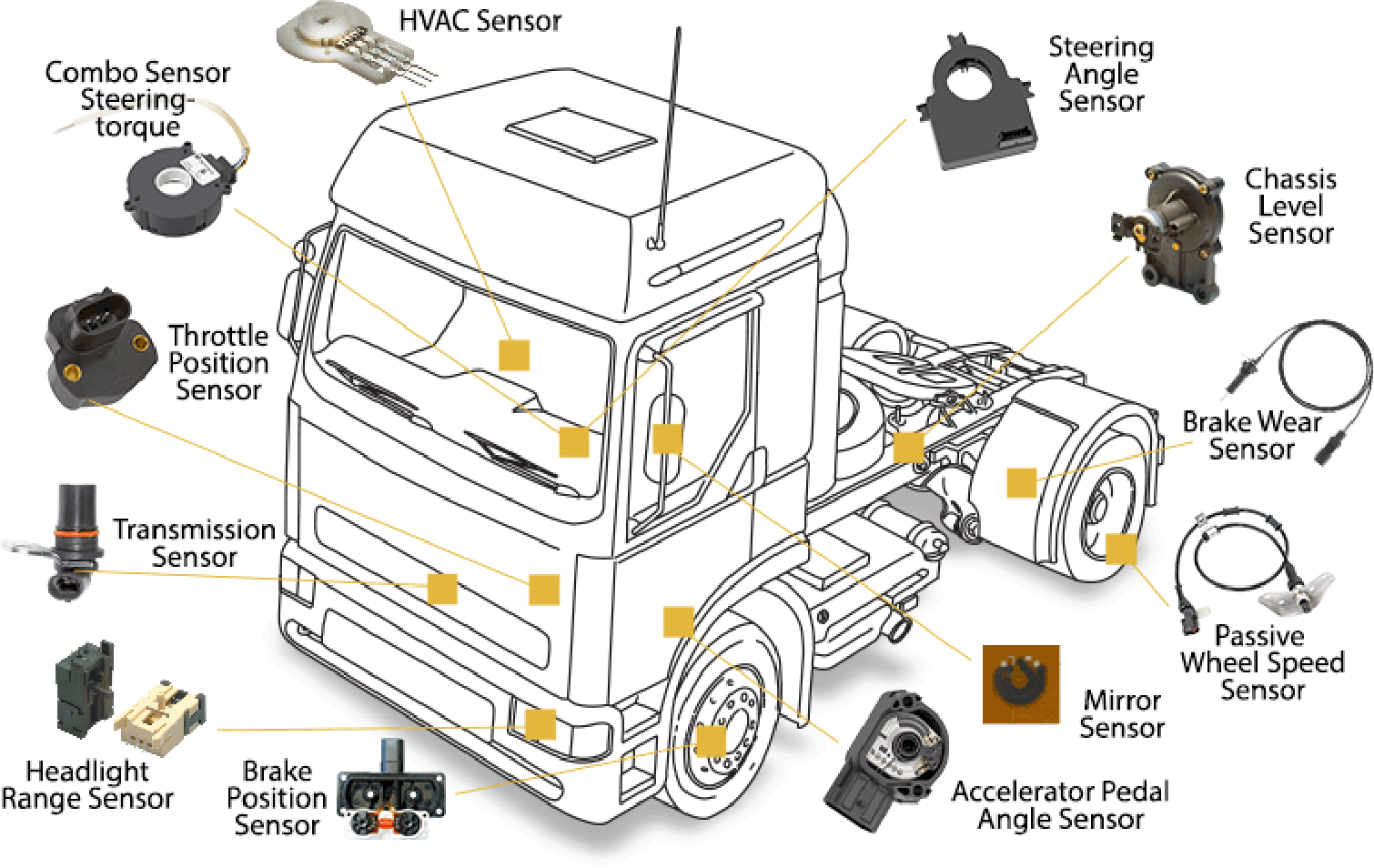

Automotive electronic sensors are mainly used in braking systems, transmission systems, engine systems, speed position systems, vehicle air conditioning systems and other fields.
The main sensor types are gear, air pressure, oil pressure, steering Angle, speed, position, tire pressure, temperature, humidity, air quality, rainfall, light amount, oxygen sensing and so on.
MDTECH Technology helps drive in the direction of safety, comfort, energy saving and intelligence.
| Model | Application point | Product type | Component | Curing condition | Solution |
| MDGEL 6708 | Vacuum booster pressure sensor | Silicone | 2K | Room temperature/heat cure | Gel potting |
| MDSI 7435 | Vacuum booster pressure sensor | Silicone | 1K | heat curing | Housing sealing |
| MDSI 7336 | Vacuum booster pressure sensor | Silicone | 1K | Room temperature | Housing sealing |
| MDSI 7336 | DPS differential pressure sensor | Silicone | 1K | Room temperature | Ceramic substrate |
| MDSI N7339 | DPS differential pressure sensor | Silicone | 1K | Room temperature | PA66 adhesive sealing |
| MDEP 3102 | Hall effect position sensor | Epoxy | 2K | Room temperature/heat cure | Housing internal potting |
| MDEP 3112 | Hall effect position sensor | Epoxy | 2K | Room temperature/heat cure | Housing internal potting |
| MDEP 3102 | Tire pressure sensor | Epoxy | 2K | Room temperature/heat cure | Housing internal potting |
| MDEP 3112 | Tire pressure sensor | Epoxy | 2K | Room temperature/heat cure | Housing internal potting |
| MDEP 3124 | Strain gauge pressure sensor | Epoxy | 2K | Room temperature/heat cure | Potting |
| MDEP 3124 | Temperature sensor | Epoxy | 2K | Room temperature/heat cure | Potting |
| MDEP 321 | Temperature sensor | Epoxy | 1K | heat curing | Induction head encapsulation |
| MDEP 3124 | Speed sensor | Epoxy | 2K | Room temperature/heat cure | Potting |
| MDEP 3124 | Transmission pressure sensor | Epoxy | 2K | Room temperature/heat cure | Potting |
| MDEP 3112 | Inductive sensor | Epoxy | 2K | Room temperature/heat cure | Inductor coil potting |
Contact Us
Ask for Sample&TDS
Soft pack potting(MDPU 8110(8608) )
Cell bonding (7336)
Water cooling plate heat dissipation (5515)
Water cooling plate internal device heat dissipation (5515)
Thermal bonding of a single cell (8110)
Beacon signal end opener (6230)
MDTECH single-component silicone meets the lithium battery frame sealing and repairable process, and has good waterproof performance and sealing ability. It can protect the BMS battery management system and has excellent thermal conductivity and electrical insulation performance.
| Model | Application point | Product type | Component | Curing condition | Solution |
| MDCOAT 7060 | BMS control module | Silicone | 1K | Room temperature/heat cure | pcb board coating |
| MDSI 7333 | BMS control module | Silicone | 1K | Room temperature | pcb board coating |
| MDTIM 5515 | BMS control module | Silicone | 2K | Room temperature/heat cure | pcb board coating |
| MDSI N7339 | Battery box | Silicone | 1K | Room temperature | box sealing |
| MDSI 7338 | Battery box | Silicone | 1K | Room temperature | box sealing |
| MDEP 3005 | Battery box | Epoxy | 2K | Room temperature | box sealing |
| MDPU 8110 (8608) | Soft pack battery cell potting | PU | 2K | Room temperature/heat cure | soft pack potting |
| MDTIM 6230 | Soft pack battery cell potting | Silicone | 2K | Room temperature/heat cure | soft pack potting |
| MDEP 3005 | Battery cell bonding | Epoxy | 2K | Room temperature | cell bonding |
| MDSI 7336 | Battery cell bonding | Silicone | 1K | Room temperature | cell bonding |
| MDEP 3005 | Solder point protection | Epoxy | 2K | Room temperature | potting |
| MDEP 3225FR | Solder point protection | Epoxy | 2K | Room temperature/heat cure | potting |
| MDTIM 5515 | BMS control module | Silicone | 2K | Room temperature/heat cure | thermal pad |
Contact Us
Ask for Sample&TDS

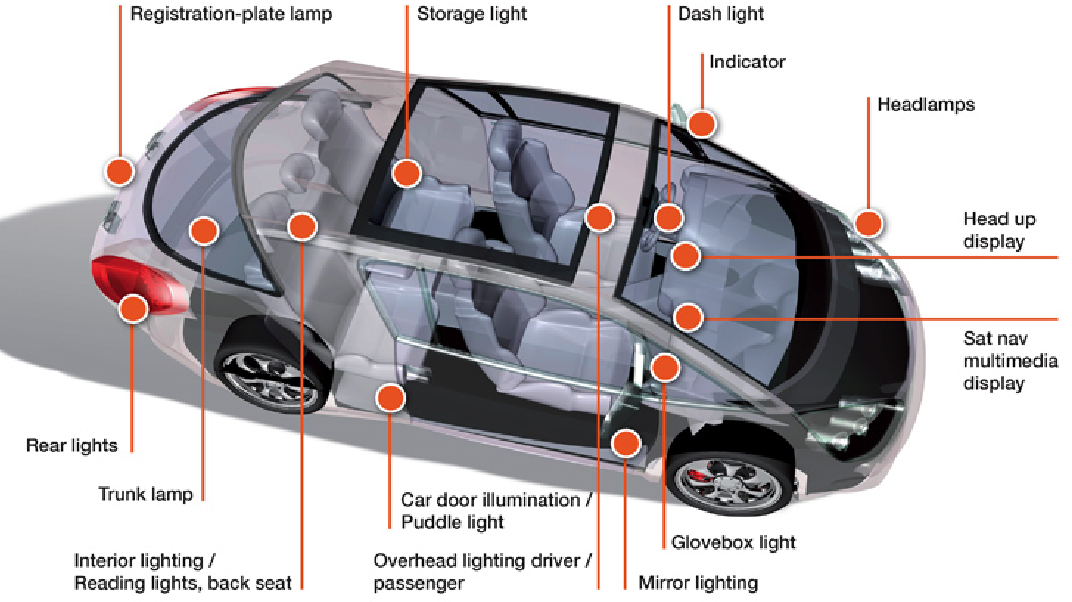

| Model | Application point | Product type | Component | Curing condition |
| MDCOAT 7060 | Car atmosphere lamp | Silicone | 1K | Room temperature |
| MDACR 2342 | Car atmosphere lamp | UV | 1K | UV curing |
| MDPU 8101 | Lamp harness | PU | 2K | Room temperature/heat cure |
| MDPU 8103 | Lamp harness | PU | 2K | Room temperature/heat cure |
| MDSI 6322 | Housing sealing | Silicone | 2K | Room temperature |
| MDSI 7336 | Housing sealing | Silicone | 1K | Room temperature |
| MDTIM 5515 | Thermal conductive | Silicone | 1K | / |
Contact Us
Ask for Sample&TDS

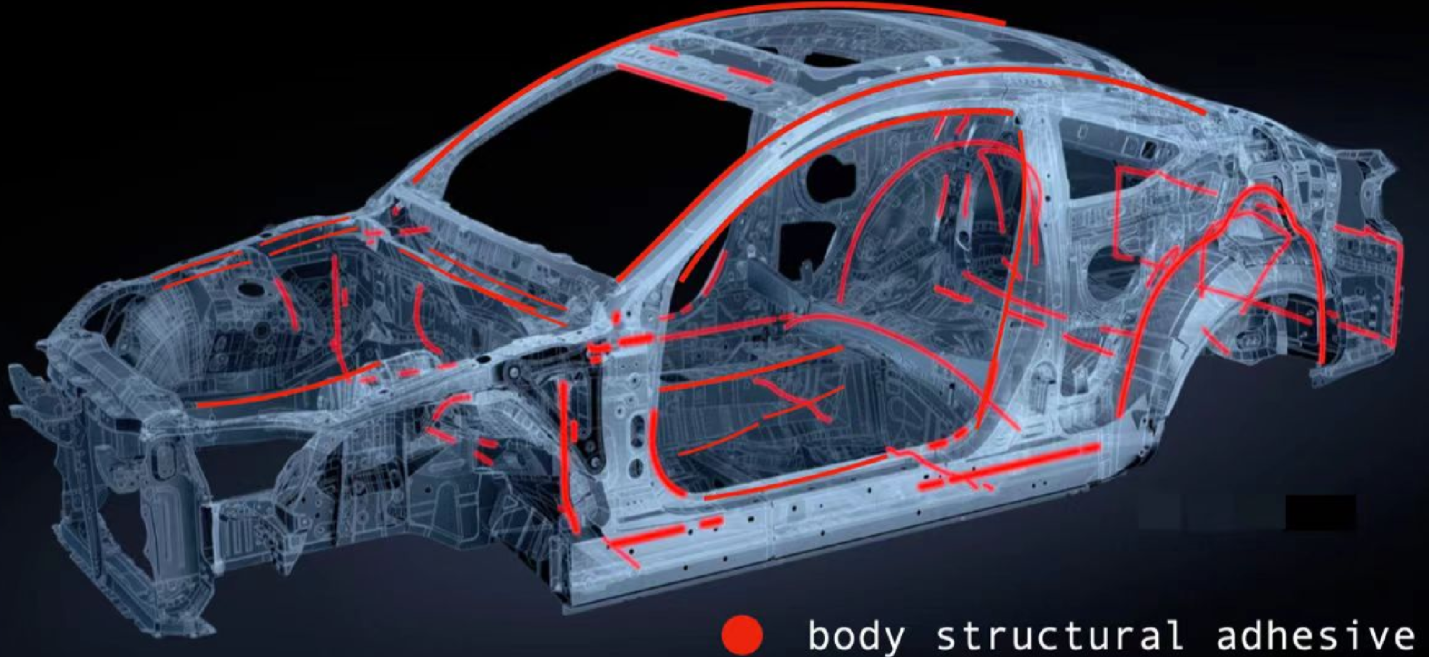

It is used for the stressed parts of the body, which requires high mechanical strength, especially impact stripping strength and durability, such as: the column, bottom plate, frame beam, top cover, side wall and other structural parts of the body.
Reduce solder joints, improve appearance, and increase steel durability
Improve efficiency and reduce costs
Avoid stress concentration, reduce deformation and increase life, increase strength and ensure safety
Improve the torsional rigidity and bending rigidity of the body.
Based on the needs of safety and lightweight, structural adhesive is a variety that has grown rapidly in recent years.
| Model | Application point | Product type | Component | Curing condition |
| MDEP 3225FR grey | Body structure bonding | Epoxy | 2K | Room temperature/heat cure |
