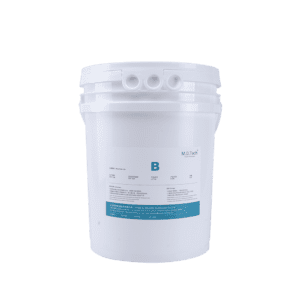

MDGR 08# Lubricating silicone grease for Electric puncture clamp
- Excellent dielectric properties
- Excellent water resistance and oxidation resistance
- Wide range of operating temperature (-55℃to 200℃)
- Good adhesion to metal, ceramic, rubber and other insulating material surfaces
- Excellent corona resistance
- Low volatility and oil separation
MDGR 08# is an efficient silicone oil based, translucent silicone lubricating silicone grease, especially used for dielectric insulation, surface protection, release and lubrication.
MDGR 08# | |
Appearance | Translucent |
Density 25℃, g/cm3 | 0.95±0.05 |
Cone penetration (mm1/10) | 220-260 |
Volatile, 24 hours @ 200 ° C, % | ≤1 |
Oil dispersion, 24 hours @ 200 ° C, % | ≤5 |
Volume resistance, 200 ° C, ohm-cm | 0.2 * 1015 |
Dielectric constant | 2.90 |
Power factor, 100Hz-10MHz | 0.001 |
Dielectric strength, 1.25mm gap, kV/mm | ≥18 |
Typical Application
- Insulation protection
- Waterproof and moisture-proof
- (Ignition systems, insulated switches, transformers, power equipment, hydraulic equipment, cables, etc.)
- Plastic, rubber aging retardants
- Metal surface protectants
- (Ignition system, TV anode cap, battery terminal, cable and connection etc.)
- Good attachment of machine to seal ring
Electronic seal, potting
Application process
MDGR 08# can be applied by grease gun, smudge, brush.
The 10% concentration of MDGR 08# can be used by spraying or soaking.
