MDSI 6322 two-component Silicone adhesive

Dealcoholized type fast curing at room temperature
Paste does not flow

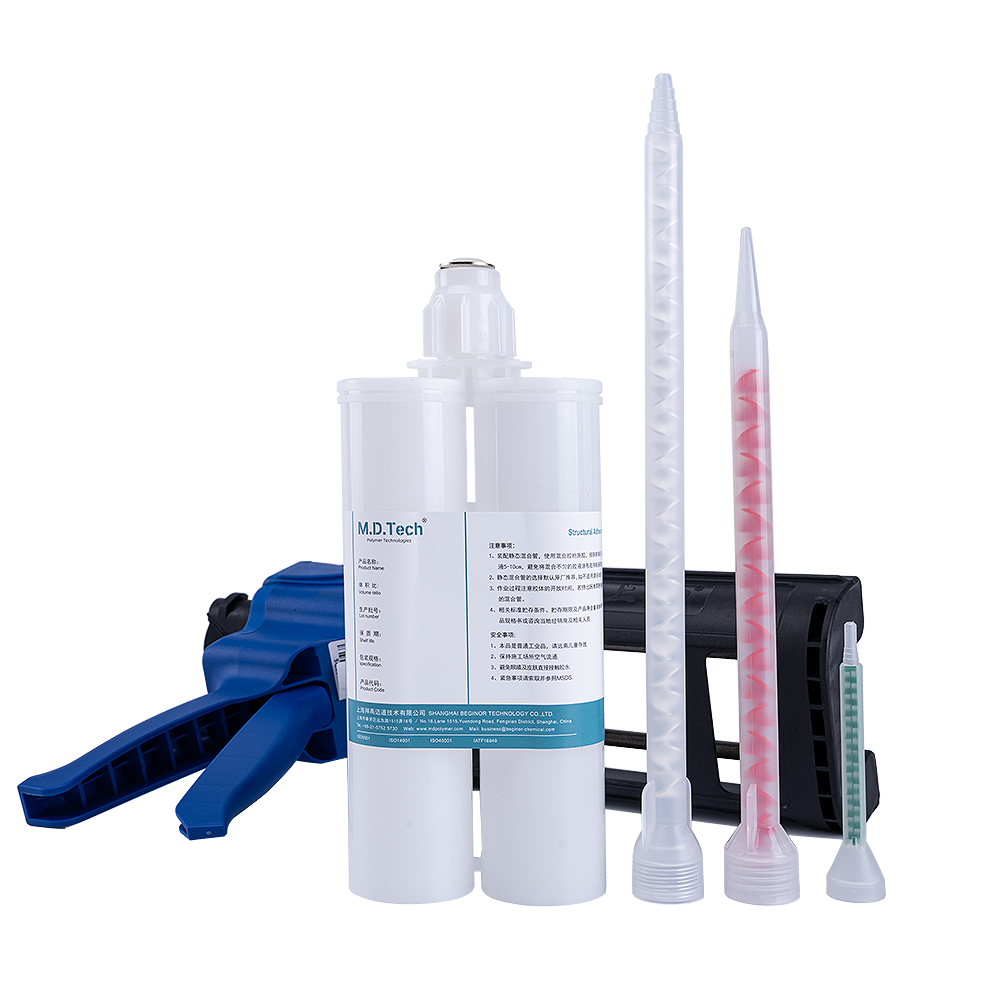

Two components 1:1 volume ratio
Allow mixing ratio error is large
Good resistance to cold and heat cross-pollination
Good adhesion to most substrates
Excellent electrical insulation
Meets food grade FDA approval
Comply with ROHS, halogen-free, REACH certification

Product description

MDSI 6322 condensed adhesive sealing silicone rubber is a two-component condensed room temperature vulcanized silicone rubber. Fast curing at room temperature, release ethanol small molecules, no corrosion to the material. Use with a two-component dispensing machine. After curing to form a soft elastomer, with excellent cold and heat resistance, aging resistance and electrical insulation properties, good moisture, seismic, corona resistance, leakage resistance. This product does not need to use other primer, can be bonded to most materials such as metal, plastic, ceramic and glass, bonding special materials PP, PE need to cooperate with a specific primer, you can also be bonded to the surface of the material by flame or plasma treatment to improve the bonding performance.

Data Sheet

Test Items	Test Standard	Component A	Component B
Pre-cure characteristics
Appearance	Visual	White half flowing	Black half flowing
Specific gravity,g/cm3, 25 ° C	GB/T13354-1992	1.35-1.45	1.35-1.45
Extrusion rate *0.4MPa air pressure, nozzle 2mm diameter,		≥100 g	≥150 g
Mixed ratio	Mass ratio	A: B = 100:100
Post-cure characteristics
Appearance	/	Black grey semi-flowing
Extrusion rate *0.4MPa air pressure, nozzle 2mm diameter	/	≥ 85g (400ml double tube +18 mixed tube)
Tack free time, min	/	5~15
Destick time, min	/	20~30
Initial molding time, mins	/	30-60
Hardening time, h	/	24
Cure data for different conditions of bonding between Fe-Fe iron sheets
Shear strength MPa After 25 ° C / 30mins, 25℃/ 30mins + 250℃ after 10mins 25℃/ 30mins + 250℃ after 120mins 25 ° C / 1 day later 5 ° C / 7 days later	GB/T528-1998	0.40 0.64 0.86 1.35 2.10
*Home appliance resin powder hanging, 60mm10mm size area**
Vertical drawing destructive power, after 25℃/ 30mins,	/	340 N
25C / 30mins + 250C after 4hrs	/	270 N
7 days after curing properties
Hardness Shore-A	GB/T531-2008	44±5
Tensile strength MPa	GB/T528-2009	2.60
Elongation at break %	GB/T528-2009	220%
Shear strength MPa	GB/T528-1998	2.10/ Fe，1.2/PC/Glass
Volume resistivity ω.cm	GB/T1692-92	2.0×10¹⁴
Operating temperature ° C	/	-60～250

Application

Microwave/induction cooker/smoke range and other household appliances
Photovoltaic modules and junction boxes
Automotive lights, sunroof, interior trim
Medium high efficiency air filter

How to use

Instructions for use

When it is necessary to attach to the application material, please confirm whether the adhesion can meet the requirements before applying.
Surface cleaning. Perform the necessary grease removal dust removal work on the surface of the substrate before use, using solvents such as alcohol or acetone.
When using, first determine the volume ratio of A and B components is 1:1, the fluctuation range can be between 10:9 and 10:11, and the mixing must be sufficient.
The higher the ambient temperature, the shorter the surface drying and curing time. For the operation of the dispensing machine, the pause time is as short as possible to prevent the colloid from blocking the hose road.
The anti-curing time of the two-component gluing machine equipment must be set within 5mins; Do not remove the mixing pipe when each interval is used for a long time, and a new mixing pipe should be removed and installed before the next use, which can effectively avoid the phenomenon of solidification and caking of component B.
Long-term exposure to the air will lead to the failure of the active ingredients, so the A and B components that have been unpacked need to be re-sealed if there are any remaining components, so as not to affect the performance of the glue.
After the B material rubber cylinder is opened and the aluminum seal is torn off, it is loaded into the pressure plate pump as soon as possible, and the gas is discharged in time to prevent the B material from crusting and curing.
