Sensors

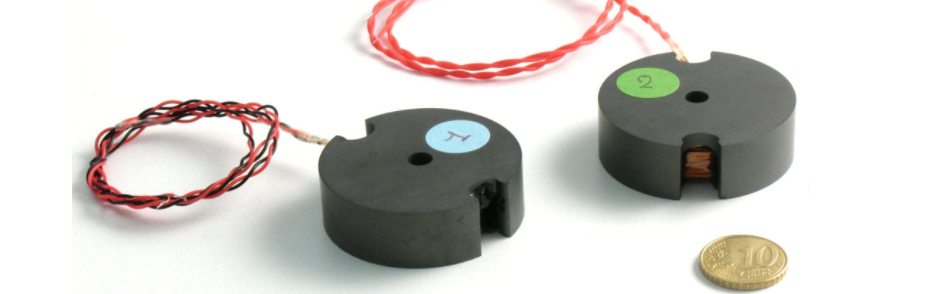

The potting adhesives developed by us are used on electromagnetic sensors to meet the good softness and adhesion. According to the size of the sensor, the adhesive products with excellent adhesion, bright surface and moderate toughness are the characteristics of many of our molding products.
| Model | Application point | Product type | Component | Curing condition | Solution |
| MDEP 3102 | Induction gate | Epoxy | 2K | Room temperature/heat cure | potting |
| MDTIM 6230 | Induction gate | Silicone | 2K | Room temperature/heat cure | potting |
| MDPU 8110 (8608) | Induction gate | PU | 2K | Room temperature/heat cure | potting |
| MDPU 8110 (8608) | Hall sensor | PU | 2K | Room temperature/heat cure | potting |
| MDSI 6125 | Hall sensor | Silicone | 2K | Room temperature/heat cure | potting |
| MDTIM 6230 | Hall sensor | Silicone | 2K | Room temperature/heat cure | potting |
| MDPU 8650 | Hall sensor | PU | 2K | Room temperature/heat cure | potting |
| MDSI 6125 | Hall sensor | Silicone | 2K | Room temperature/heat cure | potting |
| MDTIM 6230 | Hall sensor | Silicone | 2K | Room temperature/heat cure | potting |
| MDEP 3115 | Hall sensor | Epoxy | 2K | Room temperature/heat cure | potting |
| MDEP 3225FR | Temperature sensor | Epoxy | 2K | Room temperature/heat cure | potting |
| MDTIM 5512 | Temperature sensor | Silicone | 1K | / | Fill with thermal grease |
Contact Us
Ask for Sample&TDS

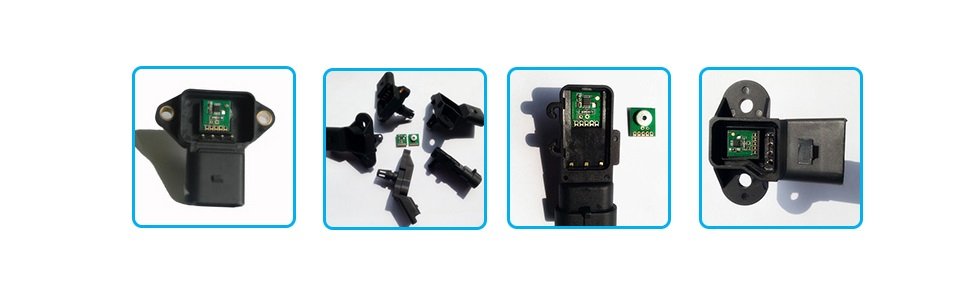

Our potting adhesive in the pressure sensor to meet the excellent adhesion, good waterproof, moisture resistance, excellent electrical insulation, stability.
| Model | Application point | Product type | Component | Curing condition | Solution |
| MDEP 3688-30 | Pressure sensor | Epoxy | 1K | heat curing | Shell bonding adhesive |
| MDSI 6708 | Pressure sensor | Silicone | 2K | Room temperature/heat cure | Potting gel |
| MDSI 7420 | Pressure sensor | Silicone | 1K | heat curing | sealant |
| MDEP 3211 | Pressure sensor | Epoxy | 2K | Room temperature/heat cure | Cover plate adhesive |
| MDCOAT 7060 | Pressure sensor | Silicone | 1K | Room temperature/heat cure | Tri-proofing tape |
| MDTIM 6230 | Throttle sensor | Silicone | 2K | Room temperature/heat cure | potting |
| MDSI 7102 | Tire pressure sensor | Silicone | 1K | Room temperature | sealant |
| MDTIM 6230 | Tire pressure sensor | Silicone | 2K | Room temperature/heat cure | potting |
| MDSI 6707 | Tire pressure sensor | Silicone | 2K | Room temperature/heat cure | potting |
| MDGEL 6605 | Load cell | Silicone | 2K | Room temperature/heat cure | potting |
| MDSI 7102 | Load cell | Silicone | 1K | Room temperature | Cover sealant |
| MDCOAT 7060 | Load cell | Silicone | 1K | Room temperature/heat cure | PCB protective adhesive |
| MDSI 7001 | Load cell | Silicone | 1K | Room temperature | Chip protection gel |
| MDEP 3220 | Pressure switch | Epoxy | 2K | Room temperature/heat cure | potting |
| MDEP 3688-15 | Pressure switch | Epoxy | 1K | heat curing | potting |
Contact Us
Ask for Sample&TDS

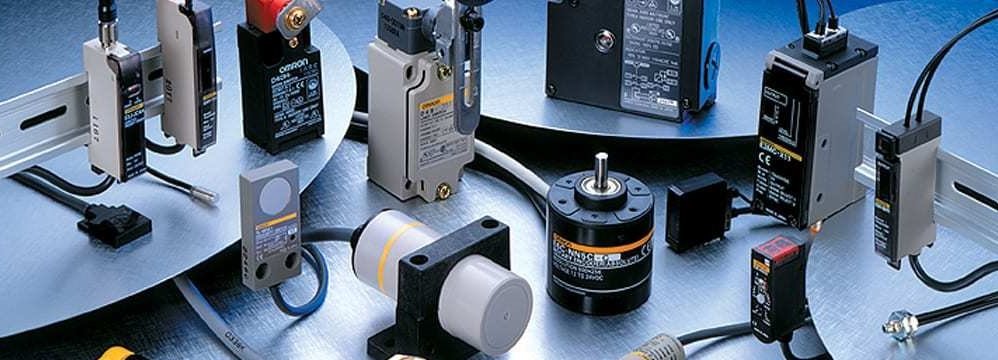

Range sensors include astern radar, displacement sensors. Liquid level sensor, photoelectric sensor. MDTECH offers solutions to meet different requirements based on sensor performance requirements.
Distance sensor, also known as displacement sensor, is a sensor that uses ultrasound or laser to measure the distance of objects, mainly used to measure the law of the position of moving objects changing with time, for a variety of measurement tasks. Optoelectronics and ultrasonic sensing technology are the working principles of distance measurement.
| Model | Application point | Product type | Component | Curing condition | Solution |
| MDTIM 6230 | Astern radar | Silicone | 1K | heat curing | potting |
| MDSI 7333 | Astern radar | Silicone | 2K | Room temperature/heat cure | seal |
| MDEP 3102 | Displacement sensor | Epoxy | 2K | Room temperature/heat cure | potting |
| MDTIM 6230 | Displacement sensor | Silicone | 1K | Room temperature/heat cure | potting |
| MDEP 3115 | Liquid level sensor | Silicone | 2K | Room temperature/heat cure | Heat resistant potting |
| MDEP 3220 | Liquid level sensor | Silicone | 1K | Room temperature | potting |
| MDPU 8110 (6030) | Photoelectric sensor | Silicone | 2K | Room temperature/heat cure | Soft potting |
| MDEP 3110 | Photoelectric sensor | Silicone | 2K | Room temperature/heat cure | potting |
| MDPU 8018#2 | Photoelectric sensor | Silicone | 2K | Room temperature/heat cure | High dielectric constant potting |
