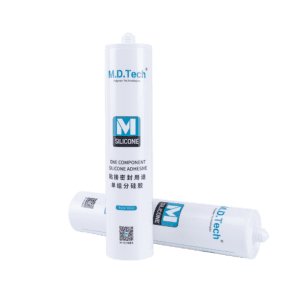

MDSI 7005 Translucent paste Silicone adhesive

Low odor, low white fog, high temperature resistance
Oil resistance transformer oil performance is excellent
Excellent acid and alkali resistance
It has excellent insulation properties
Low volatilization, no yellowing, good heat resistance
High transparency and high physical and mechanical properties
It has the function of moisture-proof, dust-proof, anti-corona and anti-seismic buffer
Good high and low temperature resistance, temperature range of -60 ~ 260℃
Excellent aging resistance, service life of up to 20 ~ 30 years
After curing, the colloid has excellent chemical solvent resistance

Product description

MDSI 7005 is a neutral dealcoholization type bonding sealant, outstanding mechanical properties, non-corrosive to bonding materials, and most materials such as PC\PA plastic, concrete, wood, felt, EVA foam, metal iron aluminum stainless steel have good bonding and sealing performance.

Data Sheet

Test items	Test standard	Units	7005 Transparent	7005 White
Color	Visual	—	Transparent micro slub paste	White thixotropic paste
Viscosity	GB/T 10247-2008	25℃, mPa·s	350,000±100,000	350,000±100,000
Density	GB/T 13354-92	25℃, g/cm3	1.05±0.05	1.22±0.05
Tack-free Time	GB/T13477.5-2002	25℃,55%RH,min	10-20	10
Hardness	GB/T 531.1-2008	Shore A	30 ± 5	38 ± 5
Tensile strength	GB/T 528-1998	MPa	4.5	4.5
Modulus	GB/T 528-1998	MPa	0.7	0.7
Shear strength	GB/T 6328-86	Mpa, Al/Al	2.5	2.5
Elongation at break	GB/T 528-1998	%	500	500
Dielectric strength	GB/T 1693-2007	kV/mm (25 ° C)	≥20	≥20
Loss factor	GB/T 1693-2007	(1MHz) (25 ° C)	0.09	0.09
Dielectric constant	GB/T 1693-2007	(1MHz) (25 ° C)	2.8	2.8
Volume resistance	GB/T 1692-92	(DC500V) Ω· cm	2.00E +14	2.00E +14

Application

LED lamp seal, plastic metal shell seal; PCB board components, wiring harness fixed
Coatings for electronic accessories, electrical appliances and communication equipment

How to use

Use process:

Clean the surface: will be glued or coated surface clean, and remove rust, dust and oil.
Sizing: unscrew (or cut) the cap of the hose, squeeze the glue liquid to the cleaned surface, make it evenly distributed, and close the adhesive surface to fix it.
Curing: Place the glued or sealed part in the air and let it cure naturally. The curing process is a curing process from the surface to the inside, within 24 hours (room temperature and 55% relative humidity) the glue will cure the depth of 3 ~ 4mm, if the glue position is deep, especially the part that is not easy to access the air, the full curing time will be extended, if the temperature is low, the curing time will be extended, 1cm thick sealant
Full curing takes more than 3 days.

Points to note:

After the operation is complete, the unused glue should be tightened immediately and sealed for storage. When using again, if there is a little crust on the seal, it can be removed without affecting normal use. Glue in the storage process, the mouth of the pipe may also appear a small amount of curing phenomenon, it can be used normally after removal, does not affect the performance of the product.
