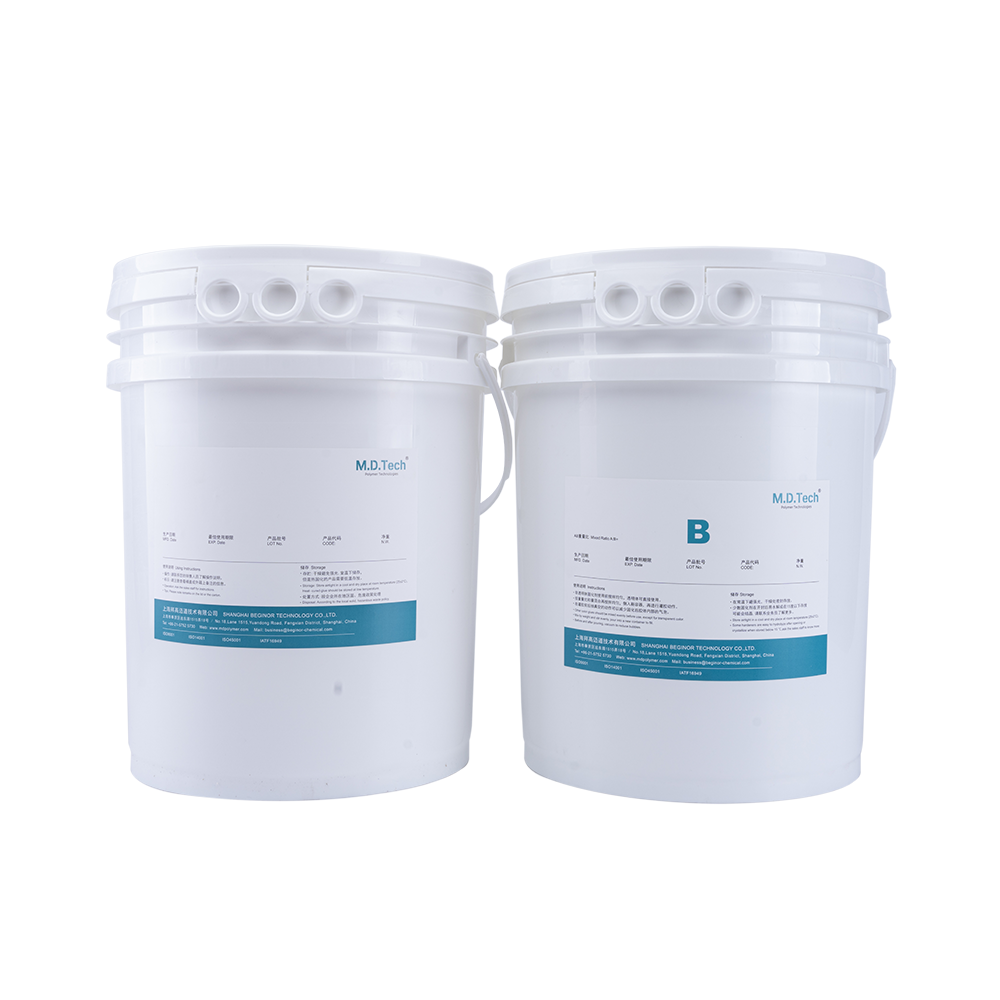

MDTIM 6230 Flame retardant Silicone potting compound
- Two components plus formed silicone rubber
- 1:1 mixing ratio
- Low hardening shrinkage
- Excellent high temperature electrical insulation and stability
- Good water and moisture resistance
- UL V-0,UL No.E538545
MDTIM 6230 is a kind of two-component silicone thermal conductivity potting adhesive, white gray black three colors, after mixing has good fluidity, operation time can be adjusted according to temperature, room temperature can be deeply cured, suitable for all kinds of heat and temperature elements potting protection, fully in line with the EU ROHS 2.0 directive and SVHC REACH requirements.
| Test items | Test Standard | Black | White | Gray |
| Appearance A | Visual | Black fluid | White fluid | Gray fluid |
| Appearance B | Visual | Off-white fluid | White fluid | Off-white fluid |
| Viscosity A,cps, 25℃ | GB/T 2794-2022 | 2500-4500 | 3500-4500 | 2000-4000 |
| Viscosity B,cps, 25℃ | GB/T 2794-2022 | 1500-3500 | 3500-4500 | 2000-3500 |
| Mixing viscosity,cps, 25℃ | GB/T 2794-2022 | 2000-4000 | 3500-4500 | 2000-3500 |
| Specific gravity, A g/cm3, 25℃ | GB/T 13354-1992 | 1.7±0.05 | 1.6±0.05 | 1.63±0.05 |
| Specific gravity, B g/cm3, 25℃ | GB/T 13354-1992 | 1.7±0.05 | 1.6±0.05 | 1.63±0.05 |
| Mixing ratio | Mass ratio | A：B = 100：100 | ||
| Operation time after mixing, min, 25℃ | GB/T 2794-2022 | 40-70 | 25-50 | 40-60 |
| Tack free time after mixing, min, 25℃ | GB/T 13477.5-2002 | 140-220 | 60-120 | ≤300 |
| Curing conditions | — | 25℃/5-8hr or 80℃/ 30mins | ||
| Post-cure characteristics | ||||
| Hardened substance formmaterial | Visual | Black gray | White | Grey |
| Hardness, Shore A | GB/T 531.1-2008 | 55±5 | 55-65 | 50-60 |
| Thermal conductivity, W/mK | GB/T 10297-2015 | 0. 75±0.05 | ||
| Coefficient of linear expansion, K-1, ppm | GB/T 1036-2008 | 230 | ||
| Dielectric strength,kV/mm,25 ° C | GB/T 1695-2005 | ≥18 | ||
| Volume resistance,DC500V, Ω·CM | GB/T 1692-2008 | 1.1×1014 | ||
| Loss factor (1 MHz) | GB/T 1693-2007 | 0.009 | ||
| Dielectric constant (1 MHz) | GB/T 1693-2007 | 3.00 | ||
| Temperature range, ° C | GBT 20028-2005 | – 60-250 | ||
| Flame resistance | UL-94 | V-0 | ||
- Automotive electronics, modules
- LED power drive module
- Solar module junction box
- Electric vehicle charging post module
- Lithium battery pack, capacitor pack
- Magnetic induction coil
- Inverter power supply
Operation and use process
- Before sizing, stir A and B components evenly in their respective packages, because the filler may partially settle during storage.
- The components A and B are weighed at a ratio of 1:1, mixed evenly, and injected directly into the components (or modules) that need to be filled and protected. It is best to slowly inject along one side of the wall, which can reduce the generation of bubbles.
- The pot-sealed component is left to stand and let it bubble itself. After the bubble has basically disappeared, it can be heated and cured, or it can be cured directly at room temperature. It takes about 5-8hr.
- Please consult the Marketing Department of our company for the potting equipment that needs quantitative gluing.
